PRO-MAG 200-2
FIGYELEM! : NEM RAKTÁRON LEVŐ TERMÉKEK , KÉRJEN SZÁLLÍTÁSI HATÁRIDŐT.
Egységár (Db):
Bruttó: 785.200 Ft
Nettó: 618.268 Ft
Cikkszám:
1080120Márka:
optimumA termék az alábbi kategóriákban található:
PRO-MAG hegesztő sorozatLeírás
SCHWEISSKRAFT® PRO-MAG - standard welding devices for thin plate welding
Process
· MIG-MAG
· MIG soldering (PRO-MAG 200-2 AM)
Sheet metal thickness
· From 0.8 mm on (MAG)
· Aluminum from 2.0 mm on (MIG)
· MIG soldering from 0.6 mm on
Parent metals
· Constructional steels
· CrNi steels ferritic / austenitic
· Duplex steels
· Galvanized, pretreated steels (MIG soldering)
Typical applications
· Repairs/maintenance of auto bodies
· Locksmithery / steel building
· Agriculture
· Formation
· Tack weldings
Made in Germany
PRO
The advantages of the MIG soldering
· No corrosion of the soldering seam
· Minimum welding splashes
· Simple retreatment of the soldering seam
· Low working temperature
· Reduced structural transformation for
higher-strength steel plates
· Capillary effect of the solder, therefore 1/3 higher
strength for round-hole and long-hole soldering
· Less melting loss of the coating
· Little distortion
· Cathodic protective effect of the parent metal in
the direct joint area (zinc)
· Protection against corrosion without subsequent
processing
· Optimum control to maintain the sheet thickness
Technical data
Wire Ø steel/stainless steel mm 0.6 - 1.0
Wire Ø aluminum mm 1.0
Wire feed m/min 0.3 - 20
Actuation 2 cycles
Current supply V 400
Set-point range A 25-200A
Operating time (ED) for Imax. (10 min.) % 30%
Welding current at 100% ED A 100
Regulating notches 8
Open-circuit voltage V 14-32
Continuous rating at 100% ED kVA 2.3
Fuse protection (slow-blow) A 16
cos phi 0.98
Type of cooling AF
Nostril cooling Gas
Protective system IP 21
Insulation class H
Weight kg 52
Dimensions L/W/H mm 760 x 320 x 580
Process
· MIG-MAG
· MIG soldering (PRO-MAG 200-2 AM)
Sheet metal thickness
· From 0.8 mm on (MAG)
· Aluminum from 2.0 mm on (MIG)
· MIG soldering from 0.6 mm on
Parent metals
· Constructional steels
· CrNi steels ferritic / austenitic
· Duplex steels
· Galvanized, pretreated steels (MIG soldering)
Typical applications
· Repairs/maintenance of auto bodies
· Locksmithery / steel building
· Agriculture
· Formation
· Tack weldings
Made in Germany
PRO
The advantages of the MIG soldering
· No corrosion of the soldering seam
· Minimum welding splashes
· Simple retreatment of the soldering seam
· Low working temperature
· Reduced structural transformation for
higher-strength steel plates
· Capillary effect of the solder, therefore 1/3 higher
strength for round-hole and long-hole soldering
· Less melting loss of the coating
· Little distortion
· Cathodic protective effect of the parent metal in
the direct joint area (zinc)
· Protection against corrosion without subsequent
processing
· Optimum control to maintain the sheet thickness
Technical data
Wire Ø steel/stainless steel mm 0.6 - 1.0
Wire Ø aluminum mm 1.0
Wire feed m/min 0.3 - 20
Actuation 2 cycles
Current supply V 400
Set-point range A 25-200A
Operating time (ED) for Imax. (10 min.) % 30%
Welding current at 100% ED A 100
Regulating notches 8
Open-circuit voltage V 14-32
Continuous rating at 100% ED kVA 2.3
Fuse protection (slow-blow) A 16
cos phi 0.98
Type of cooling AF
Nostril cooling Gas
Protective system IP 21
Insulation class H
Weight kg 52
Dimensions L/W/H mm 760 x 320 x 580

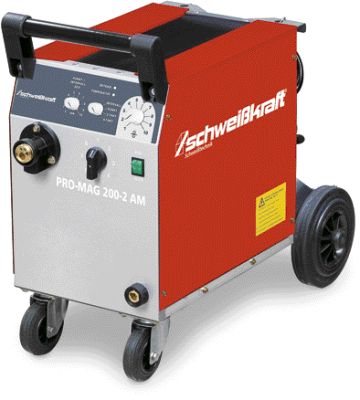

A kép csak illusztráció!
