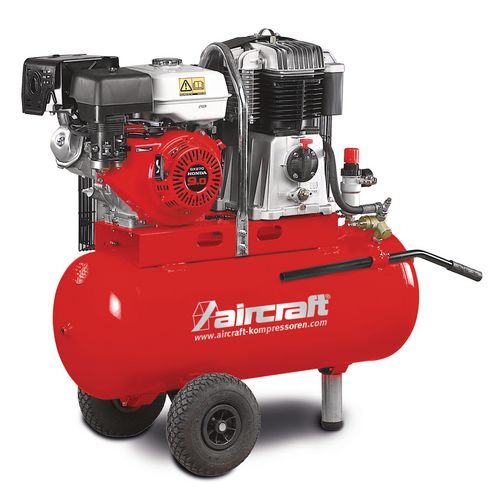

AIRBAU 652/100 B PRO
FIGYELEM! : NEM RAKTÁRON LEVŐ TERMÉKEK , KÉRJEN SZÁLLÍTÁSI HATÁRIDŐT.
Egységár (Db):
Bruttó: 1.270.660 Ft
Nettó: 1.000.520 Ft
Cikkszám:
2006530Márka:
optimumA termék az alábbi kategóriákban található:
Mobil kompresszorLeírás
· Single cylinder/4-stroke engine by Honda for power-supply independent operation
Independent of a power supply and thus perfectly suited for gardening and landscape
gardening, for mobile tyre and breakdown recovery services and in agriculture and forestry
· With idle speed and speed control to adjust to load states
· The high-performance grey cast iron engine and the low speed guarantee smooth action
and a long compressor service life
· The large impeller and a cooling air duct ensure optimum cooling of the compressor
· Stable metal belt guard grille
· A re-cooler with large-surface cooling fins ensures a low pressure vessel inlet temperature,
thus reducing the moisture content of the compressed air
· Full set of safety equipment
· 10-year guarantee on the pressure vessel against corrosion penetration
Technical data
Compressor system* HOS
Maximum volume flow 642 l
Fill capacity approx. 480 l
Maximum pressure 14 bar
Pressure vessel capacity 100
Cylinders/stages 2/2
Speed 950 rpm
Motor output 6.6 kW
Drive Single-cylinder
/4-stroke engine
Weight 121 kg
Dimensions (LxWxH) in mm 1050 x 500 x 1060
Sound power level** 99 dB(A)
The freewheel valve avoids continuous switching on and off
· After reaching the preset pressure, the valve opens and the compressor
continues to run in depressurised state
· When the pressure drops, the valve shuts-off and the compressor builds
up pressure again
